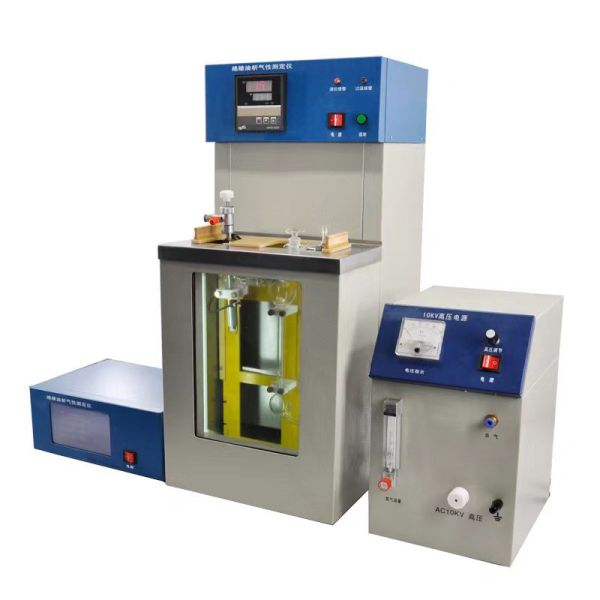

Fully Automatic Insulating Oil Gas Separation Tester 1200rpm

Name: Fully Automatic Insulating Oil Gas Separation Tester 1200rpm
Brand: SKYLINE
Price: 1 USD

Brand Name : SKYLINE

Model Number : SL-OA61

Certification : CE , Calibration Certificate

Place of Origin : CHINA

MOQ : 1 Unit

Price : negotiated

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 unit / month

Packaging Details : plywood case

Constant temperature : 80℃

Accuracy : ±0.2

Resolution : 1S

Test voltage : 10.00KV

Time measurement : 5 MIN; 10 MIN; 50MIN; 60MIN; 120MIN

Heater : 800W×2

Stirring motor : 25W

Stirring speed : 1200rpm

Power supply voltage : AC220V±10％ 50(60)Hz±1Hz

Main unit dimensions : 320×700×405 (mm) (width×height×depth)

Dimensions of auxiliary machine : 200×400×280(mm) (width×height×depth) (high voltage box)

Weight : 35Kg

Temperature : 25℃±10℃

Relative humidity : <85%

Contact Now

SL-OA61 Automatic Insulating Oil Gas Separation Tester

Product Description:

The fully automatic insulating oil gas separation tester uses infrared optical fiber optic cable sensing technology to detect the flowing liquid level to ensure the accuracy and precision of the measurement. It is characterized by reliable operation, easy operation and high precision. It is widely used in petrochemical, electric power, railway, scientific research and other departments. It is an excellent equipment for oil product analysis and quality inspection.

Technical Features:

The MCS-51 series single-chip microcomputer is used as the system control core, the 7-inch 256-color intelligent color screen display and the configuration of the screen touch buttons ensure the advanced nature and reliability of the whole machine.

Chinese LCD display, man-machine menu dialogue, wizard-style operation.

Automatic constant temperature oil bath at 80°C, automatic hydrogen filling, automatic opening and closing of the straight-through valve.

Automatically measure the amount of gas evolution for 10 minutes and 50 minutes of electricity, and automatically calculate the gas evolution G value of the sample; G=(B60-B10)×1000/50; (see GB/T11142-89 standard).

Technical Parameters:

Constant temperature	80℃
Accuracy	±0.3℃
Resolution	0.1°C
Test voltage	10.00KV
Accuracy	±0.2KV
Resolution	0.01KV
Time measurement	5 MIN; 10 MIN; 50MIN; 60MIN; 120MIN
Accuracy	±0.2
Resolution	1S
Heater	800W×2
Stirring motor	25W
Stirring speed	1200 rpm
Power supply voltage	AC220V±10％ 50(60)Hz±1Hz
Main unit dimensions	320×700×405 (mm) (width×height×depth)
Dimensions of auxiliary machine	200×400×280(mm) (width×height×depth) (high voltage box)
Weight	35Kg
Temperature	25℃±10℃
Relative humidity	<85%
